Simple measurement operation

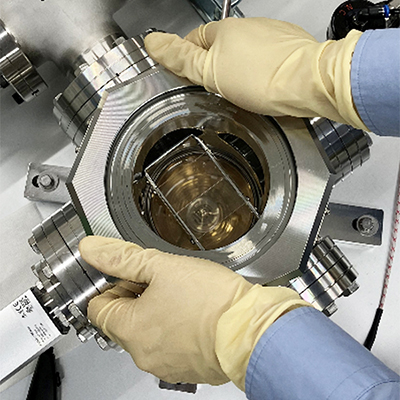

The hydrogen analyzer series is an ultra-high vacuum type that does not require vacuum transport of samples. Simply place the sample on the quartz stage inside the heating chamber, close the lid, and press the start button to easily begin measurement. It is designed for easy operation, even for beginners.

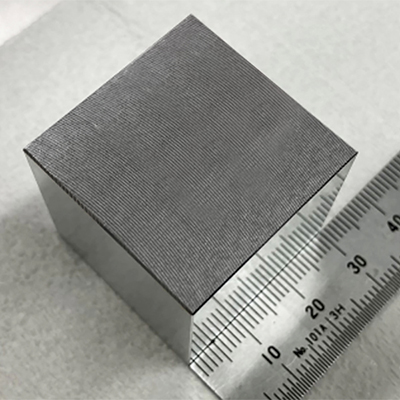

Large Sample Compatibility (World's Largest Sample Size)
It can accommodate samples up to 30×30×30 mm in size.
This sample size is among the largest for thermal desorption hydrogen analyzers, enabling flexible analysis by accommodating a wide variety of samples.

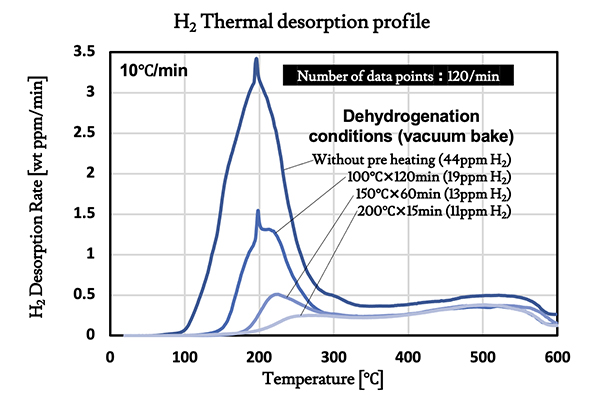

Hydrogen Analysis in Electroless Nickel Plating (5μm)

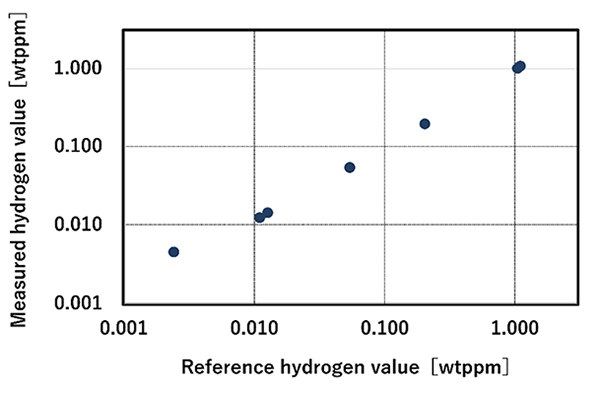

Calibration curve graph

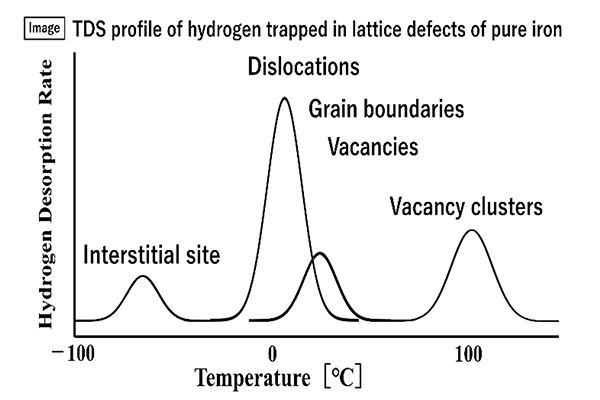

Low-Temperature Measurement Function [Under Development] (World-Class for Commercial Applications)
The cryogenic measurement function currently under development will enable the separation and detection of hydrogen trapped in iron lattice defects.
This function represents a world first for a private company and is also a world-leading technology.

High-Speed Detection
The hydrogen analyzer series boasts a detection speed of once per second.
This is 300 times faster than the detection speed of once every five minutes offered by other methods.
By accelerating the heating rate, four measurements per day are possible.

Ultra-High-Sensitivity Hydrogen Detection
Using ultra-high vacuum technology, high-sensitivity mass spectrometers, and large-capacity sample handling, hydrogen concentrations below ppb (ng/g) can be detected.

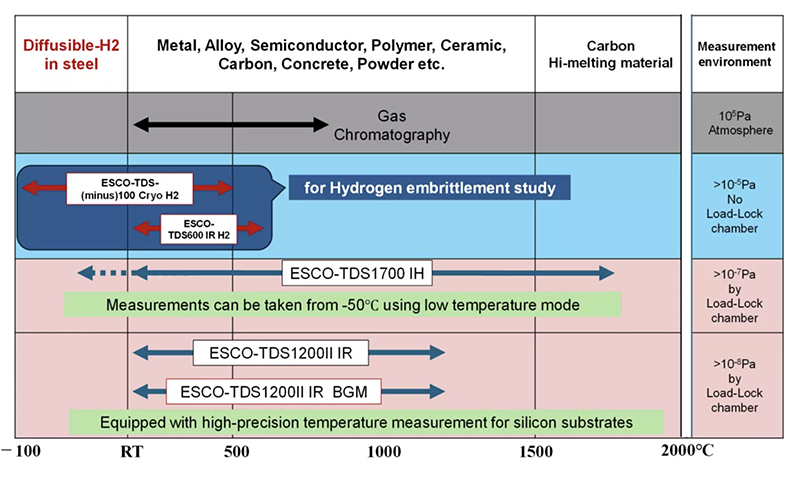

ESCO-TDS Lineup
